1/8" Shank Diameter Tungsten Carbide Rotary Burr with 3mm Head for Die Grinder and Wood Sharpening

1/8" Shank Diameter Tungsten Carbide Rotary Burr with 3mm Head for Die Grinder and Wood Sharpening

Nom De Marque:	KINGTOOLS
Numéro De Modèle:	Le nombre d'équipements à transporter est déterminé par le numéro de série de l'équipement.
Nombre De Pièces:	2
Prix:	$0.88-3.59

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Sichuan, Chine

Diamètre de la tige:

1/8 "

Matériel:

Carbure de tungstène

Diamètre de la tête:

3 à 25 mm

Longueur de tête:

6 à 36 mm

Longueur totale:

38 à 81 mm

Diamètre de coupe:

1/4", 1/8"

Longueur de tige:

23-35mm

T/MN suggéré:

25000-50000

Rpm maximale:

70000

Dureté:

HRA ≥ 85

Dureté de traitement:

HRC70

Modèle de coupeur:

Coupe double, coupe simple, coupe Aluma

Quantité:

Ensemble de 10 pièces/20 pièces

Plage de vitesse:

15000 à 45000 tours/min

Grade:

YG6, YG7, YG8

Mettre en évidence:

1/8" Shank Diameter Carbide Rotary Burr

Tungsten Carbide Material Rotary Burr

3mm Head Diameter Rotary File

Description du produit

Product Overview

Specifications

Product Name	Tungsten Steel Hard Carbide
Cutter Pattern	Double Cut & Single Cut & Aluma Cut
Suitable For	Drilling, Metal Carving, Engraving, Polishing

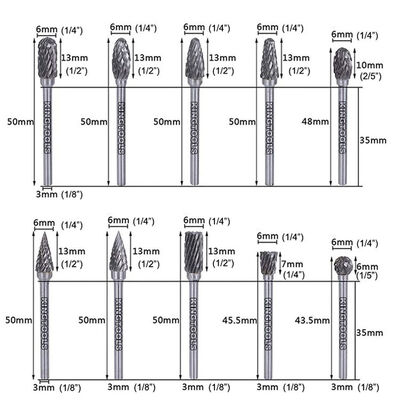

10Pcs 3×6mm Set	Package Size: 5 × 4 × 0.5 inches Cutting Dimensions: 3×6mm/0.12×0.24 inch (Approx.) Material: Tungsten Carbide Total Length: 45-50mm Cutting Diameter: 1/4 inch Shank Length: 35mm Shank Diameter: 1/8 inch
20Pcs 3×3mm Set	Package Size: 5 × 4 × 0.5 inches Cutting Dimensions: 3×3mm/0.12×0.12 inch (Approx.) Material: Tungsten Carbide Total Length: 38mm Cutting Diameter: 1/8 inch Shank Length: 23-35mm Shank Diameter: 1/8 inch
Suggested RPM	25000-50000, Max RPM 70000
Hardness (HRA)	≥ 85

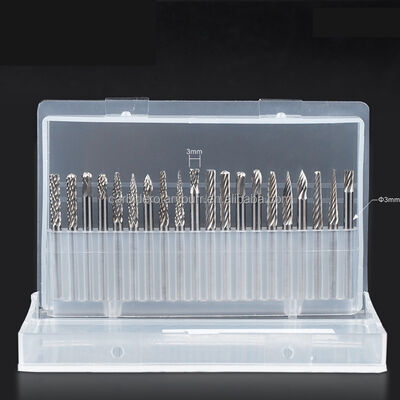

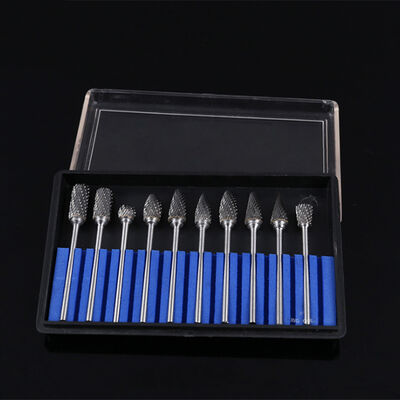

Quantity	10pcs/20Pcs Set in Storage Box

Key Features

Processes all types of metal (including hardened steel) and non-metal materials (marble, jade, bone)
Processing hardness up to HRA 85
High production efficiency, reduces labor intensity
Simple and convenient to use
Compatible with pneumatic or electric tools

Important Note: When using rotary files in pneumatic or electric tools, maintain speed between 1000-3700 RPM and ensure the tool is firmly clamped.

Product Details

Technical Specifications

Carbide Burr Details

Brand: KINGTOOLS
Shank Hardness: HRA 89-92.5
Material: Pure Tungsten Carbide
Available Diameters: 3mm/6mm/8mm/10mm/12mm/14mm/16mm
Operating Speed: 15000-45000 RPM
Grade: YG6, YG7, YG8
Model: Customized Carbide Burrs
Samples: Free Shipping Available

Recommended RPM by Burr Diameter

Diameter of Burr	Recommended RPM
1.6mm or 1/16"	25,000 - 35,000
2.35mm or 3/32"	17,000 - 26,000
3mm or 1/8"	17,000 - 26,000
6mm or 1/4"	11,000 - 16,500
12mm or 1/2"	8,000 - 12,000
16mm or 5/8"	7,650 - 11,500

Product Advantages

100% quality brand new construction
Processes materials up to HRC70 hardness
Replaces small wheel stems with no dust pollution
High production efficiency - several times higher than files, nearly 10 times higher than small grinding wheels
Produces high-quality finishes and precision mold cavities
Extended lifespan - 10 times more durable than high-speed steel tools, 200 times more durable than small grinding wheels
Easy to use, safe, and reliable operation
Reduces labor intensity and improves working environment
Suitable for cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, ceramic tile, marble, jade, bone, and more
